Stock Code: 000821

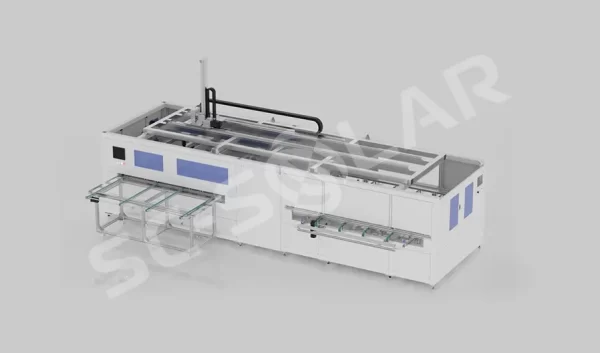

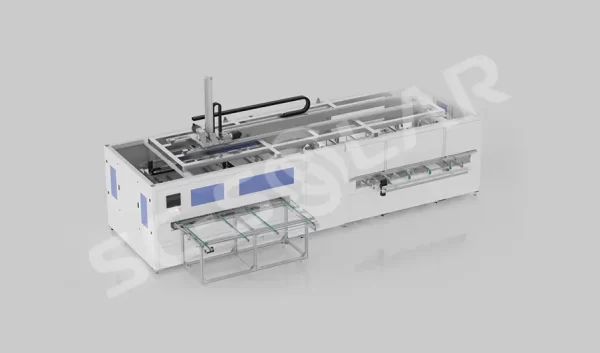

After the frame is conveyed into the machine, it is automatically reshaped and framed onto the module. The independent shaping unit corrects local deformations at any position on the frame. The servo-driven handling system enables quick switching between module types. The framing press head features overpressure detection to prevent module breakage.
Specifications
| Compatible module size | length: 1650-2600(mm); width: 950-1400(mm) |
| Cycle time | ≤18s |
| Feeding method | Long edge feeding (LEL) |
| Alignment method | Four-side alignment |
| Power | ≤8.5kW |
| Air supply | 0.5-0.7(MPa) |
| Dimension(L×W×H) | 7500*3800*2950(mm) |
