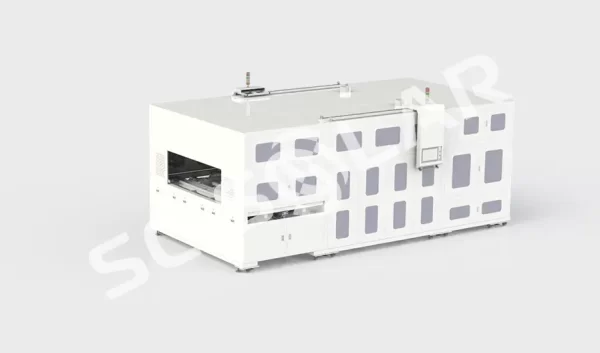

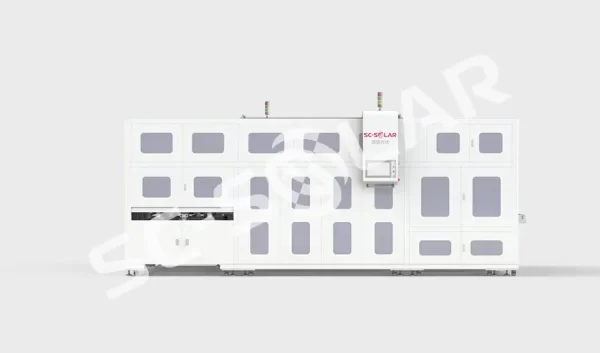

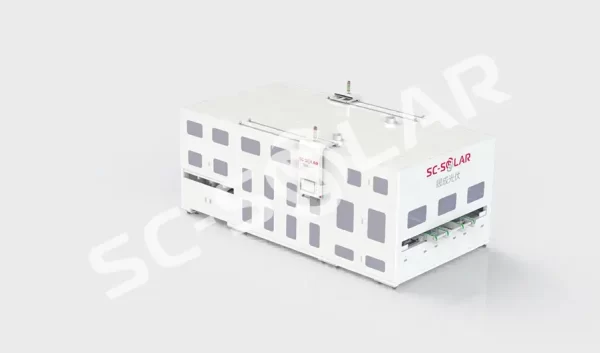

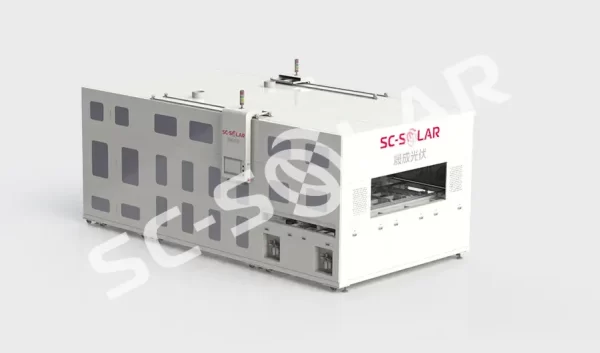

Layup & Bussing Integration Machine

Seamlessly connects with high-speed stringers, enabling precise cell alignment and automatic correction. Intelligent features include frequency tracking, welding energy monitoring, and virtual weld detection. Integrated functions—layout, overlapping, and busbar ironing—streamline the production flow, reduce handling steps, lower space and cost requirements, and enhance overall efficiency.

Specifications

Applicable glass size length: 1640-2550(mm); width: 900-1450(mm)
Cycle time ≤40s
Power requirement AC380V±5%, 3P+1N+1PE
Power peak 35kW; average 15kW
Air supply 0.6-0.8(MPa) dry and clean compressed air, Consumption: 2m³/min
Control system PLC+touchscreen+CCD vision inspection
Weight 7000kg
Dimension(L×W×H) 6300*3200*2550(mm)
