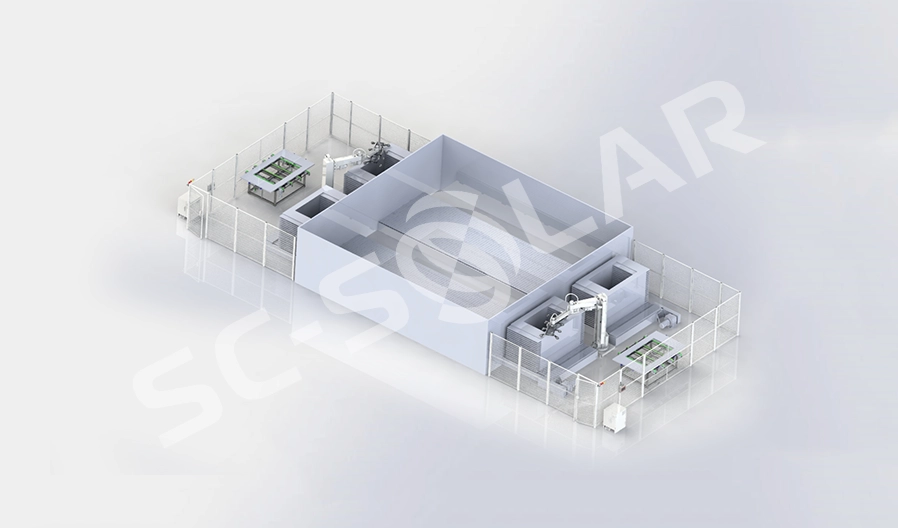

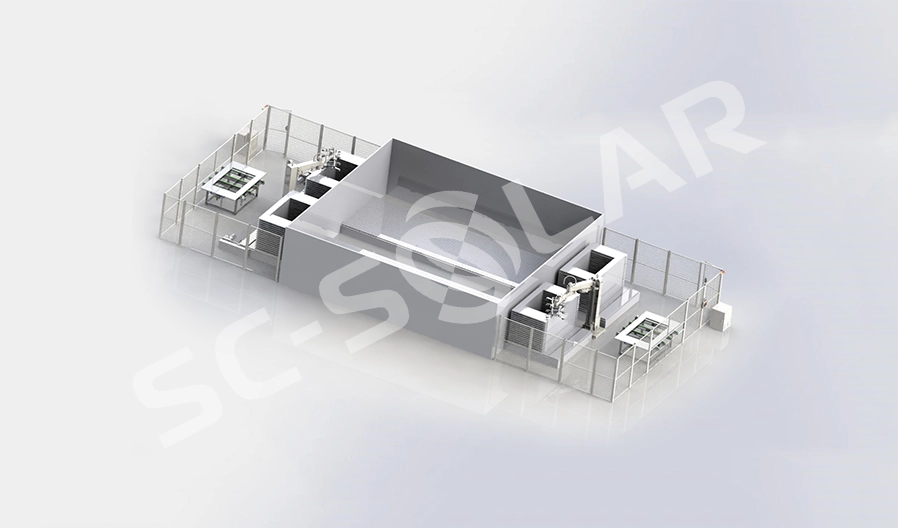

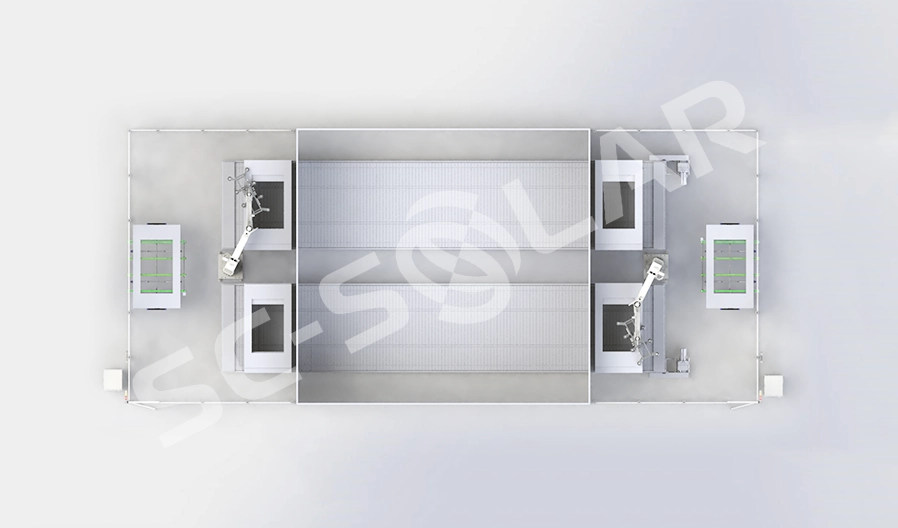

Designed for module curing processes, the system enables efficient transfer between conveyor lines and curing chain lines, completing stacking, curing, and unstacking cycles; a four-axis robotic structure ensures flexible operation and strong adaptability, supporting continuous automation and seamless line integration.
Specifications
| Compatible module size | length: 1640-2600(mm); width: 950-1450(mm) |
| Cycle time | ≤12s |
| Power requirement | AC380V, 3P+N+PE, 50Hz |
| Power | 5kW |
| Air supply | 0.6-0.8(MPa); Consumption: 0.35m3/min |
| Noise | ≤75dB |
| Weight | 2130kg |
| Dimension(L×W×H) | 8376*5150*2500(mm) |
