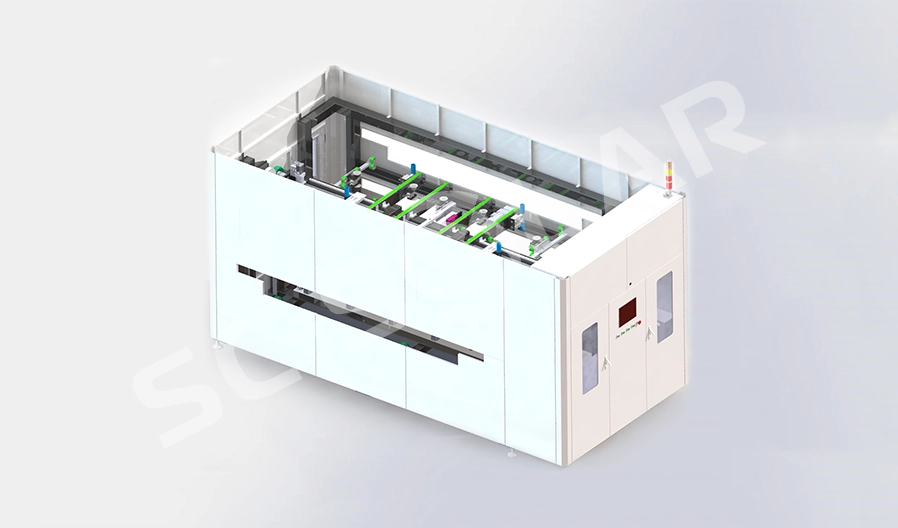

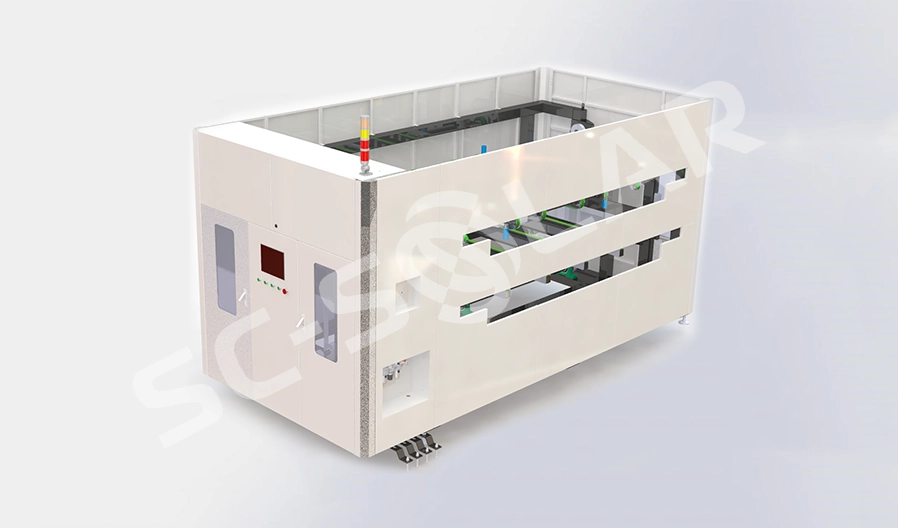

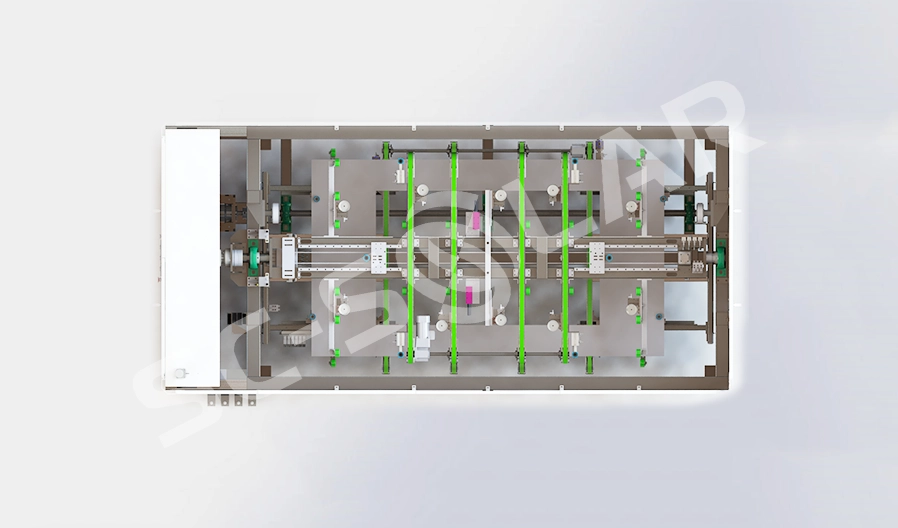

Designed for module layup, the system vacuum-absorbs and flips the second glass by 180° before placing it onto the alignment station; servo-controlled alignment and feeding ensure high positioning accuracy and flexible, efficient format changeover.
Specifications
| Compatible module size | length: 1650-2600(mm); width: 950-1450(mm) |
| Cycle time | ≤12s |
| Feeding method | Long edge feeding |
| Alignment method | Four-side alignment |
| Power | ≤5kW |
| Air supply | 0.5-0.7 (MPa) |
| Weight | 2500 kg |
| Dimension(L×W×H) | 4250*2010*2150 (mm) |
