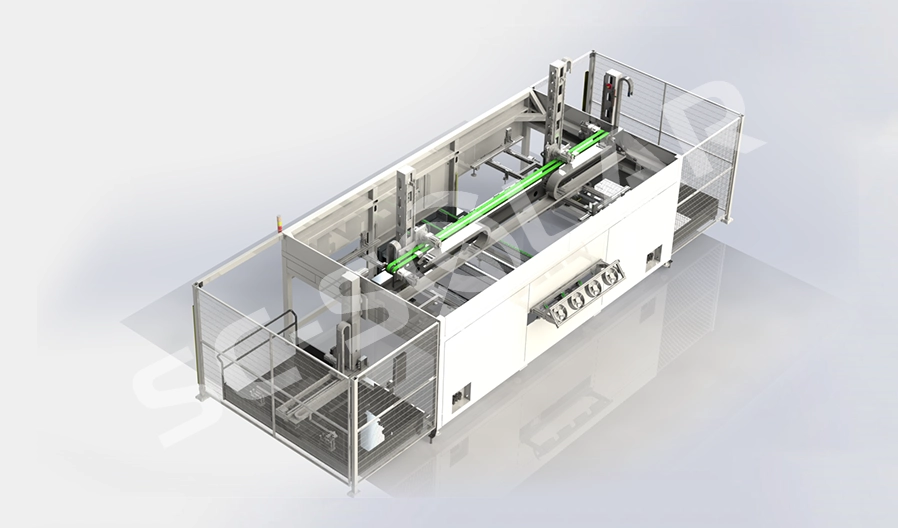

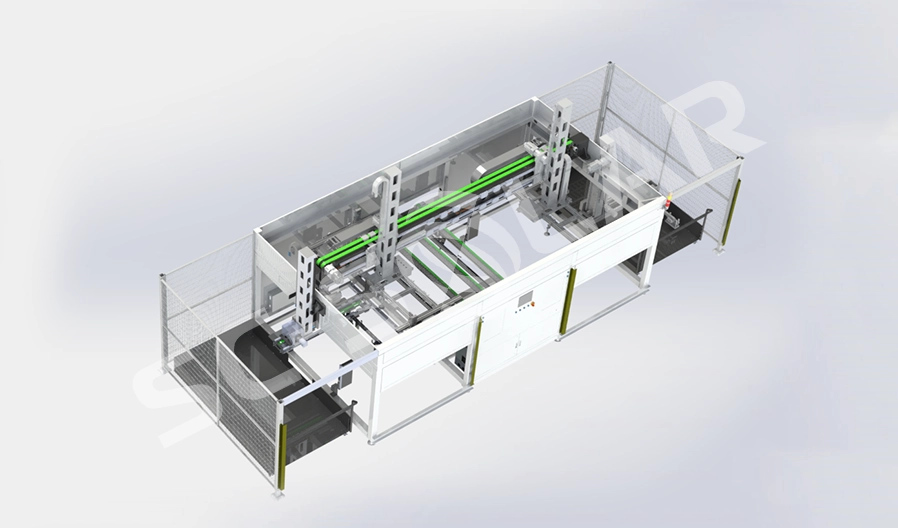

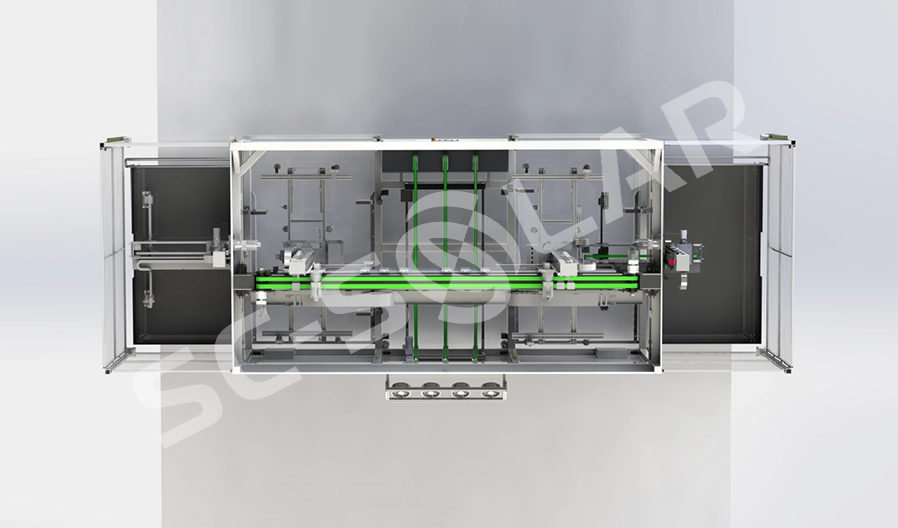

Designed for automatic glass loading in module production, the system integrates glass handling, loading, and interleaving paper separation and collection in one process; it supports flexible mode switching and features an integrated cleaning function to remove static and dust, ensuring stable operation and high cleanliness.
Specifications
| Compatible module size | length: 1650-2550(mm); width: 990-1450(mm) |
| Cycle time | ≤12s |
| Power requirement | AC380V, 3P+N+PE, 50/60Hz |
| Power | 10kW |
| Air supply | 0.6-0.8(MPa); Consumption: 0.3m3/min |
| Noise | ≤75dB |
| Weight | 6000kg |
| Dimension(L×W×H) | 8890*3010*3600(mm) |
