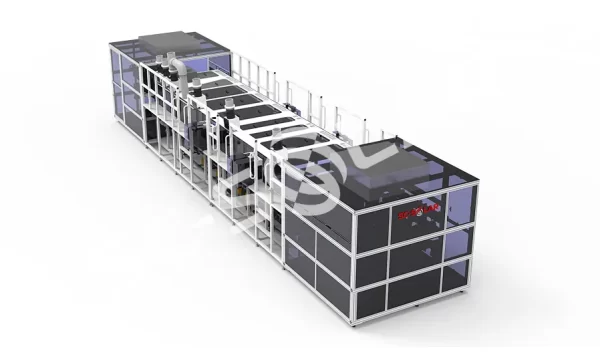

Perovskite Cell Glass Cleaning Equipment

Perovskite Cell Glass Cleaning Equipment

Features

Belt brush replaces the traditional alternating brush;
EUV or AP for TCO glass surface modification；
Dry section driven by magnet coupling gear, wet section lubricated with drip water + PE helical gear transmission；
UPE anti-static material, High-precision air knife used to block water；

Datasheet

Performance

Uptime ≥98%;
Purification rate ≥98%(Small particulate > 98%, Medium particulate: 0 EA, Large particulate: 0 EA);
Contact angle< 15 °(Initial: contact angle < 60°);
Glass substrate size: 2000mm(L)x1000mm(W) (Short side in), Thickness 2mm~5mm;
65 pcs/hour (55 s/pc), Glass pitch 500mm, maximum transmission speed 4m/min.

Parameter

Layout dimension: 10410mm*3100mm*2200mm (Automation included)
