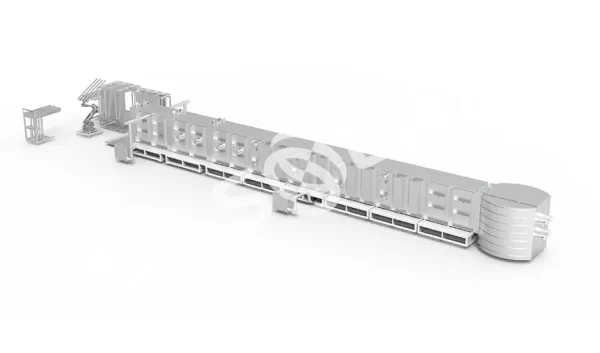

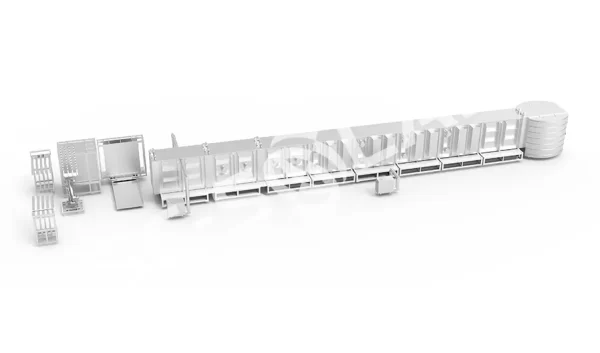

Vertical PVD System with U Turn

Vertical PVD System with U Turn

Vertical PVD System with U Turn

Vertical PVD System with U Turn

Features

Vertical sputtering with U turn, footprint reduction;
2800 mm in length, planar cathode;
Intelligent program management, real-time data recording.

Performance

Substrate: 1200mm*2400mm*2.2~3.2mm；
Tact time: 35s；
Process speed: 40mm/s;
Breakage rate<0.1%；
Grip area <5mm;
Between/Within uniformity<5%。

Parameter

Layout: 43700mm*11480mm*5200mm (Automation included)
