Stock Code: 000821

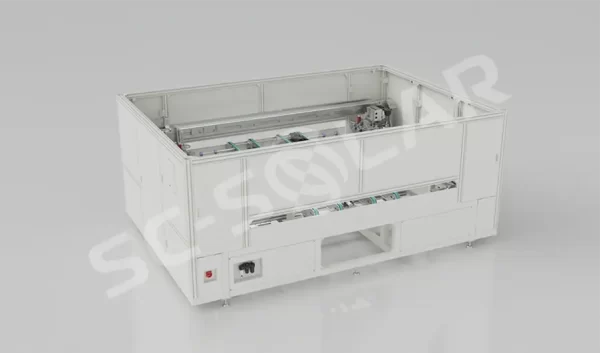

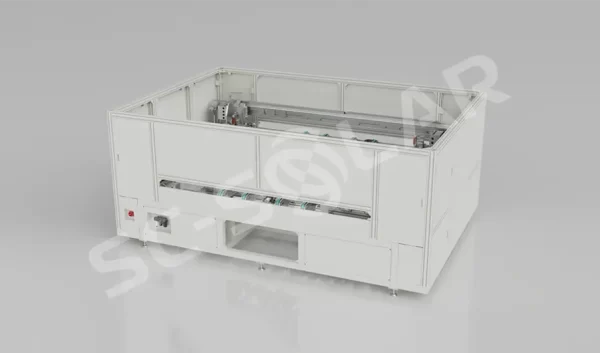

Designed for aluminum foil edge sealing of PV modules. The servo-driven sealing system enables fast and precise operation with one-click changeover. Soft polyurethane rollers provide flexible contact, effectively preventing glass damage and avoiding cell breakage or micro-cracks.
Specifications
| Compatible module size | length: 1650-2550(mm); width: 990-1450(mm) |
| Cycle time | ≤24s |
| Tape specifications | length: 500-1000(m); width:10-15(mm); thickness: 0.06-0.10(mm) |
| Tape roll specifications | inner diameter: φ77±1mm; outer diameter: ≤φ400mm |
| Alignment method | Four-side alignment |
| Power | ≤8kW |
| Air supply | 0.5-0.7(MPa) |
| Dimension(L×W×H) | 4200*2900*2000(mm) |
