Stock Code: 000821

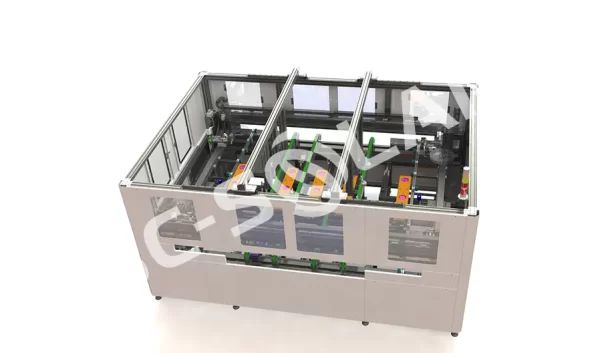

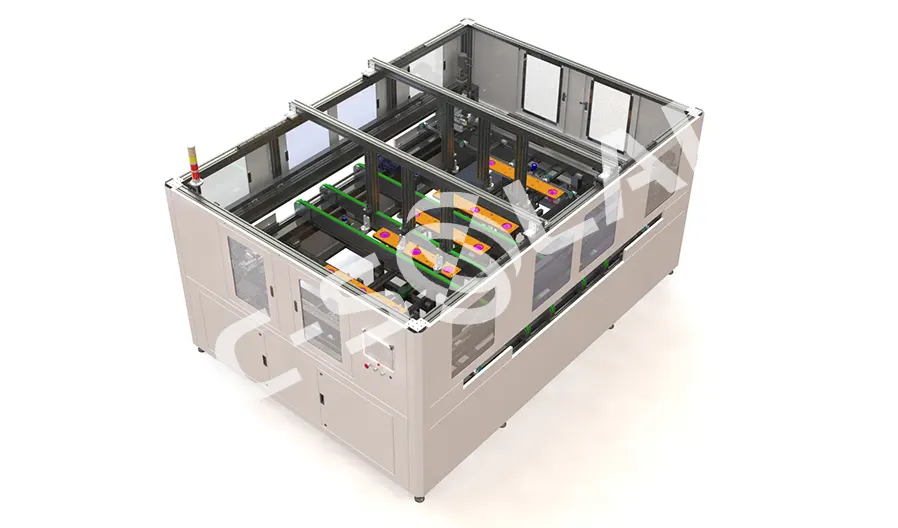

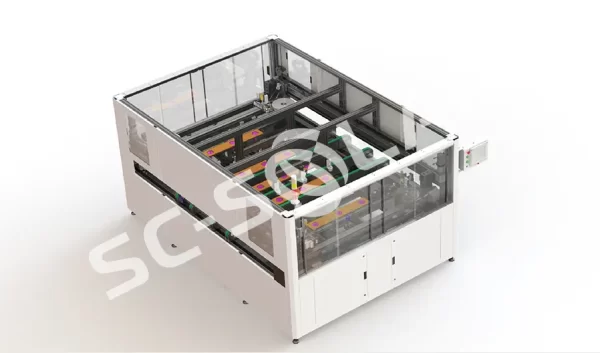

Automatically performs G2G module four-side edge sealing with fast changeover and high precision. Servo-driven sealing modules apply and press tape using soft materials to effectively protect cells. Supports one-click switching for various module sizes, ensuring sealing without wrinkles, bubbles, or microcracks. Offers flexible operation and high yield.
Specifications
| Compatible module size | length: 1650-2550(mm); width: 990-1450(mm) |
| Cycle time | ≤14s |
| Tape specifications | length: 500-1000(m); width: 25-40(mm); thickness: 0.06-0.10(mm) |
| Tape roll specifications | inner diameter: φ77±1(mm); outer diameter: ≤φ330(mm) |
| Alignment method | Four-side alignment |
| Power | ≤6.5kW |
| Air supply | 0.5-0.7(MPa) |
| Dimension(L×W×H) | 3810*2720*1950(mm) |
