Stock Code: 000821

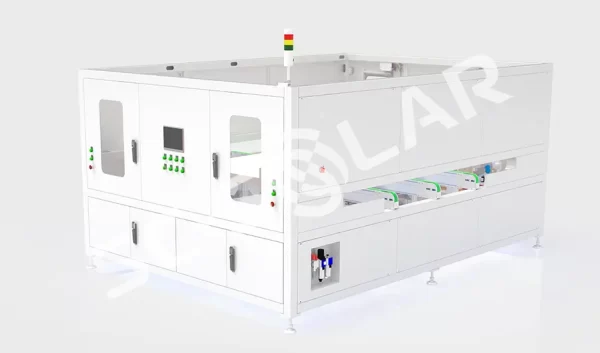

Compatible with mainstream module types, using air blowing and non-woven fabric wiping to ensure thorough cleaning of frame corners. Compact and stable in design, equipped with a servo system for flexible and efficient operation. Modular structure allows quick model changeover and supports diverse production needs.
Specifications
| Compatible module size | length: 1800-2500(mm); width: 900-1350(mm) |
| Cycle time | 14s |
| Power requirement | AC 3 phase, 380V/N/PE, 50Hz, 10kVA |
| Air supply | 0.4-0.6(MPa), one drop, Consumption: 0.4m³/min |
| Noise | ≤75dB |
| Weight | 1800kg |
| Dimension(L×W×H) | 4120*2800*2000(mm) |
