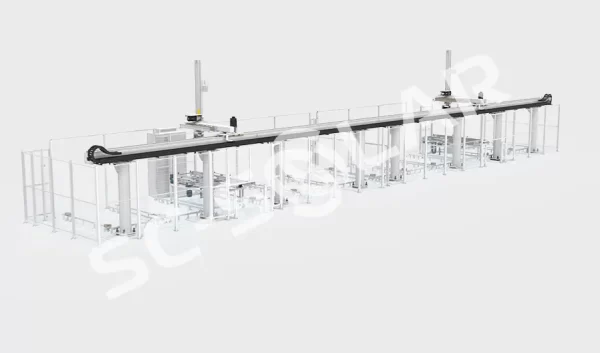

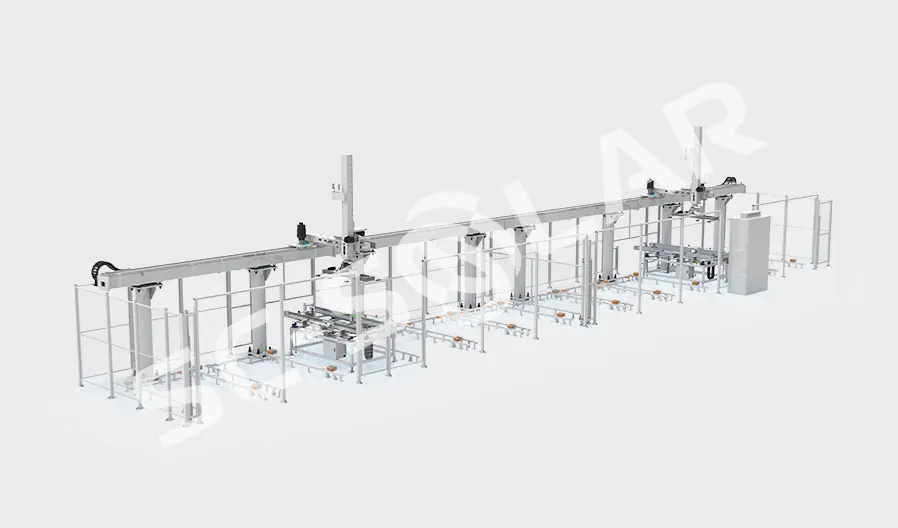

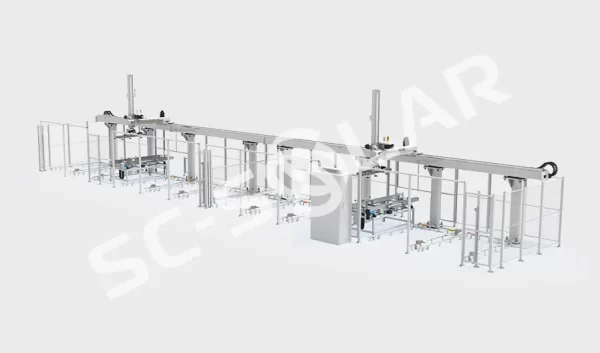

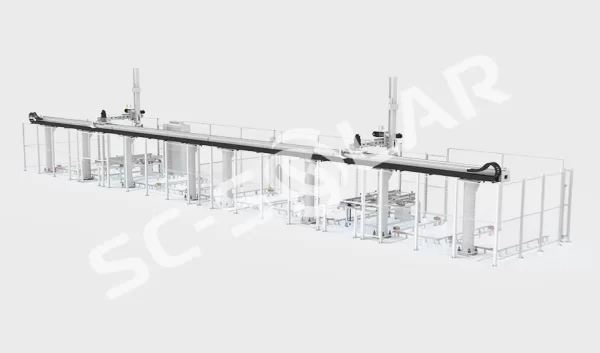

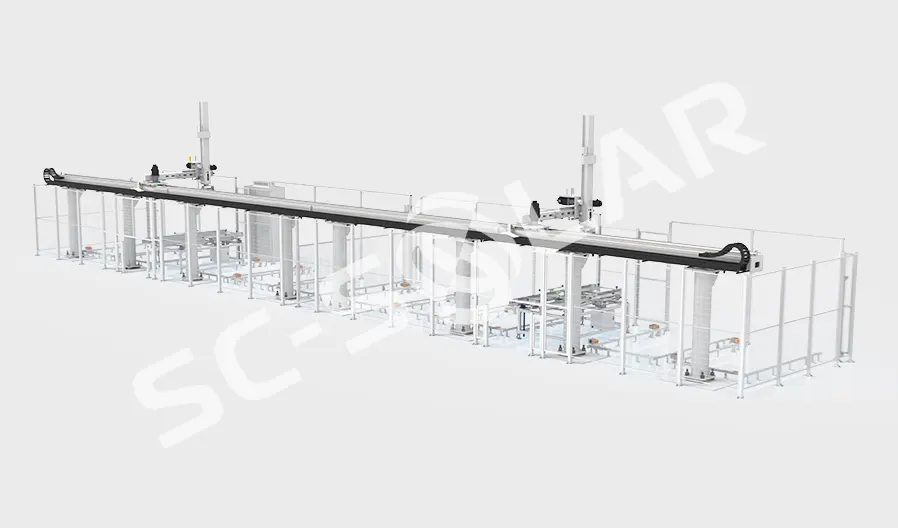

Module Vertical Palletizing System

Automatically sorts modules based on bin information, compatible with all mainstream module types and packing methods—including vertical packing of both standard and glass-glass modules. Delivers high-speed, stable performance within a compact footprint. Easy and flexible to operate via teach pendant, with a highly standardized and modular design for seamless expansion and fast model changeover.

Specifications

Compatible module size length: 1600-2520(mm); width: 900-1450(mm)
Cycle time 14s
Power requirement AC 3 phase, 380V/N/PE, 50Hz, 20kVA
Air supply 0.4-0.6(MPa), one drop, Consumption: 0.6m3/min
Noise ≤70dB
Number of Palletizing positions ≤6 ≤12
Weight 7000kg 13000kg
Dimension(L×W×H) 15000*4200*4800(mm) 28000*4200*4800(mm)
