Stock Code: 000821

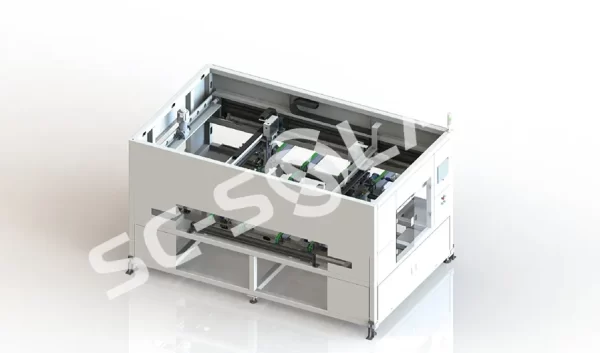

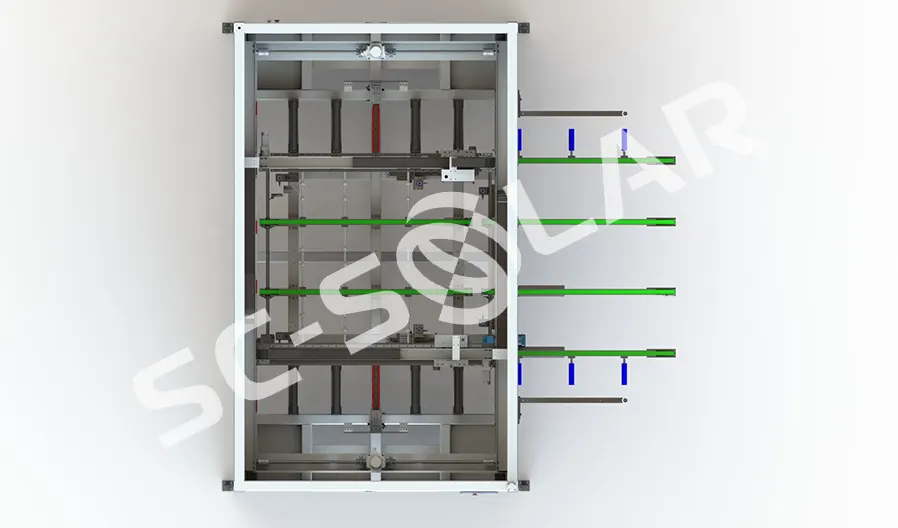

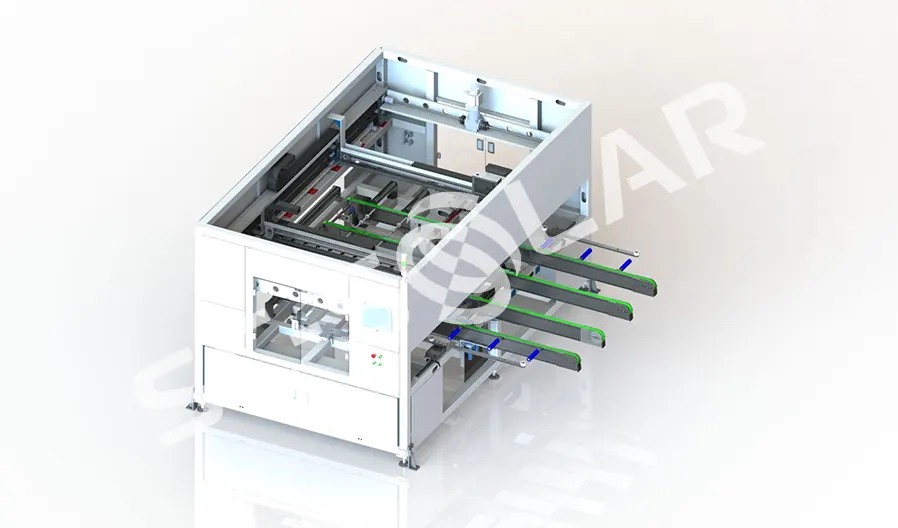

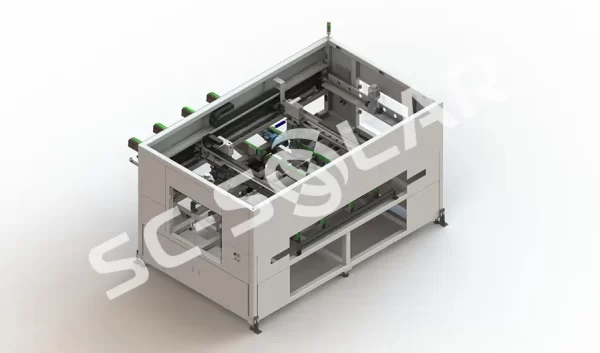

Enables automatic taping between battery strings to prevent displacement, balancing flexibility and stability. Supports various module sizes with quick changeover. Intelligent control of tape position and pressure ensures accurate application, avoiding weak adhesion and cell breakage. Compatible with multiple taping methods and tape formats to meet diverse process requirements.
Specifications
| Compatible module size | length:1640-2550(mm); width:980-1450(mm) |
| Cycle time | ≤14s (including infeed and outfeed time) |
| Alignment method | Four-side alignment |
| Tape specifications | standard length: 12/16/18/20/22/25(mm); width: 5-10(mm)
(customizable) |
| Tape roll specifications | inner diameter: φ77±1(mm); outer diameter: ≤φ200(mm) |
| Power | 9.2kW |
| Air supply | 0.6-0.8(MPa) |
| Noise | ≤60dB |
| Dimension(L×W×H) | 3350*3550*1750(mm) |
